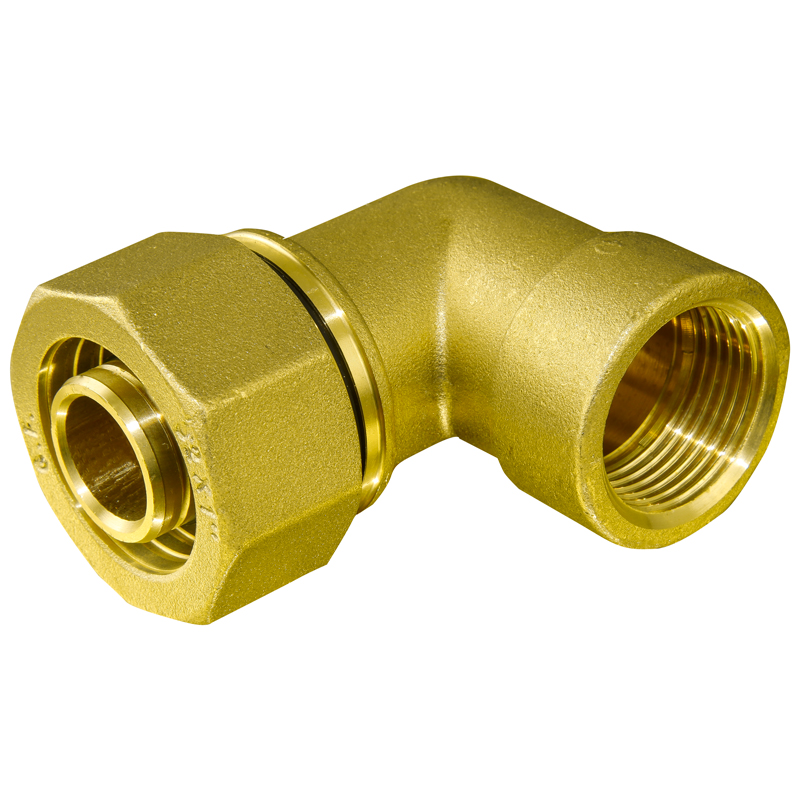

Female PE Elbow


Catalogo > Armoured Fittings

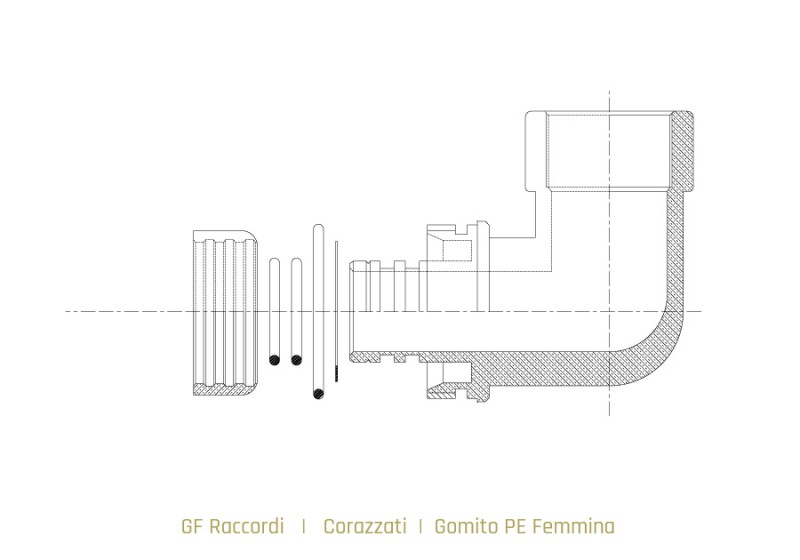

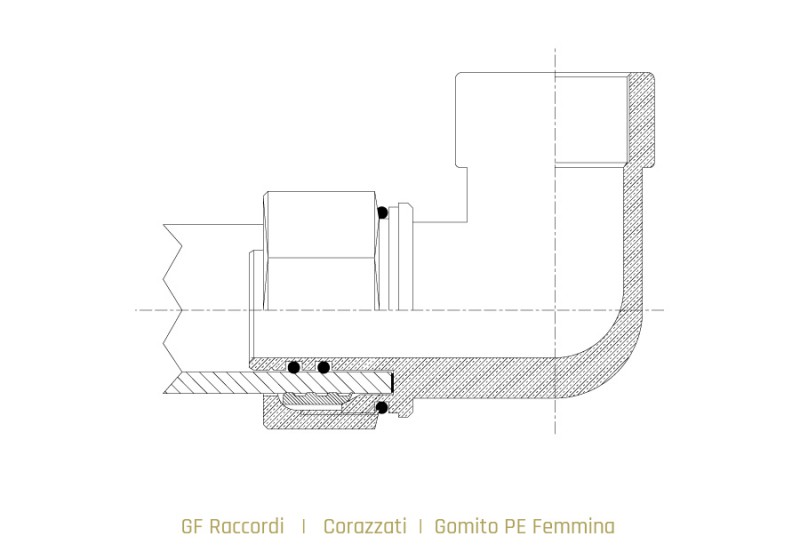

Composition of fitting for multilayer - armoured pipe and dimensional characteristics:

The Armoured Female PE Elbow fitting is made up of the following components:

1 Body in brass CW617N, hot moulded

1 Ring-tightener ring nut in brass CW617N, hot moulded

1 Self-tightening conical ring in brass CW614N derived from bar

2 O-rings in nontoxic NBR 70 rubber. Compound suitable for contact with potable water approved: ACS No. 09 CLP LI 008 – TZW KTW D1 D2 of 19 Dec 2007 – NSF ANSI 61 N° IG770-01

1 O-rings in nontoxic EPDM 70 rubber

1 PTFE washers

The female threading of our fittings is cylindrical, in compliance with standard UNI ISO 228

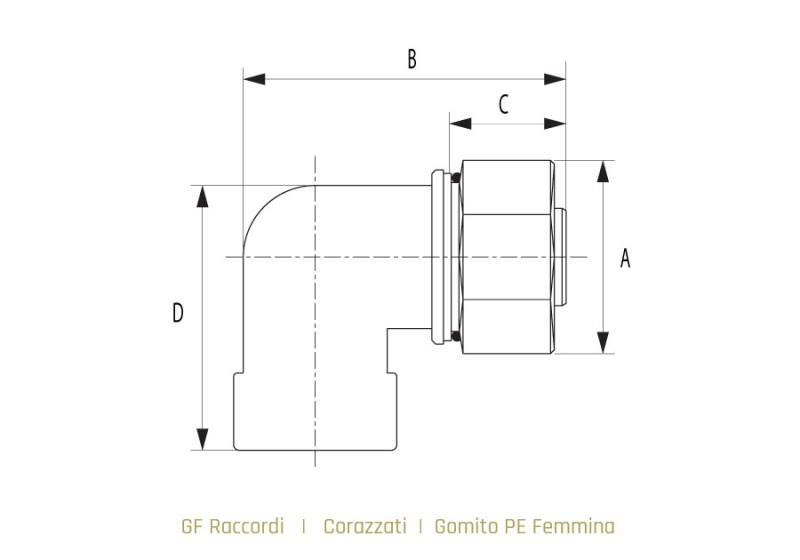

Code

Female threading diameter gas UNI 228

Nominal diameter threading pipe PE

A

B

C

D

Unit weight

mm.

mm.

mm.

mm.

Kg.

RF_AGF032C

1”

ᴓ 32

53

84

30

67

0.660

RF_AGF050C

1”1/2

ᴓ 50

73

127

35.5

100

1.600

RF_AGF063C

2”

ᴓ 63

87

137

40

114

2.290
