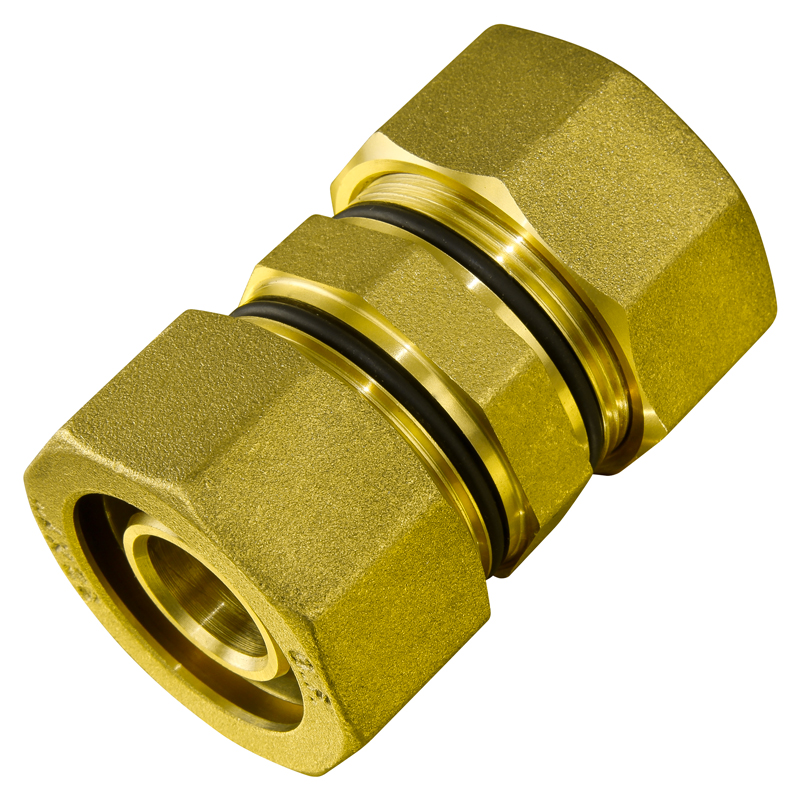

Double joint


Catalogo > Armoured Fittings

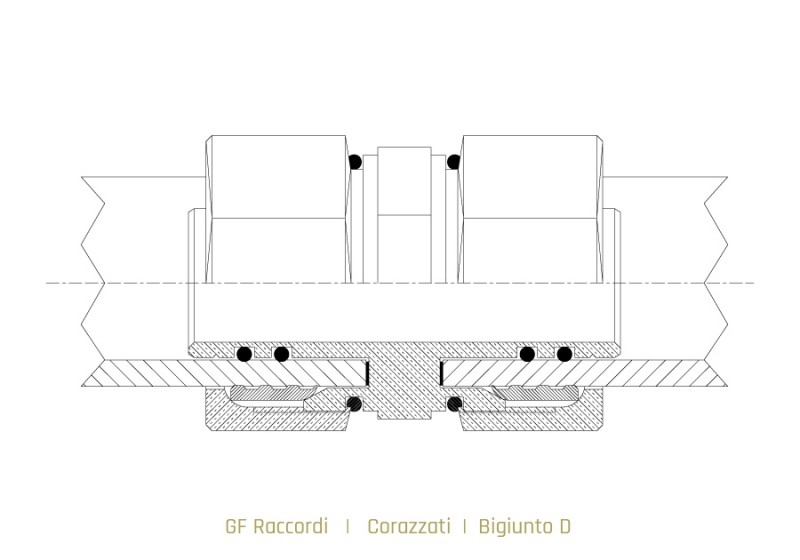

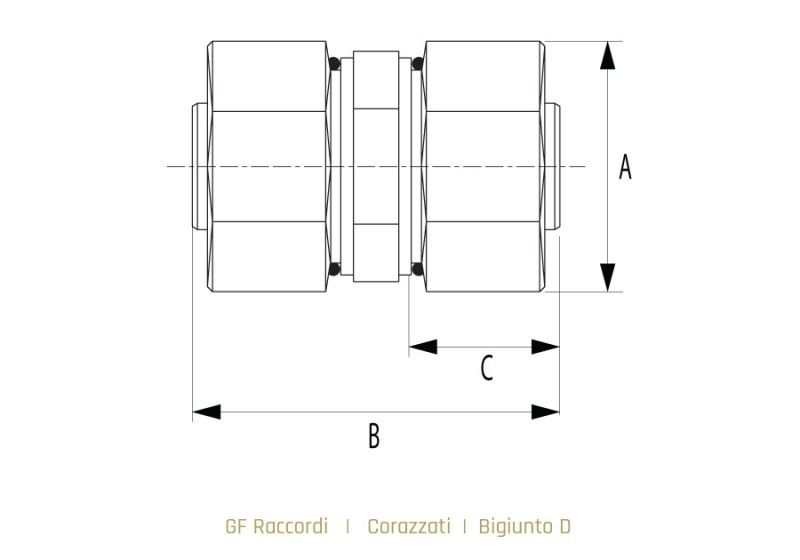

Composition of fitting for multilayer - armoured pipe and dimensional characteristics:

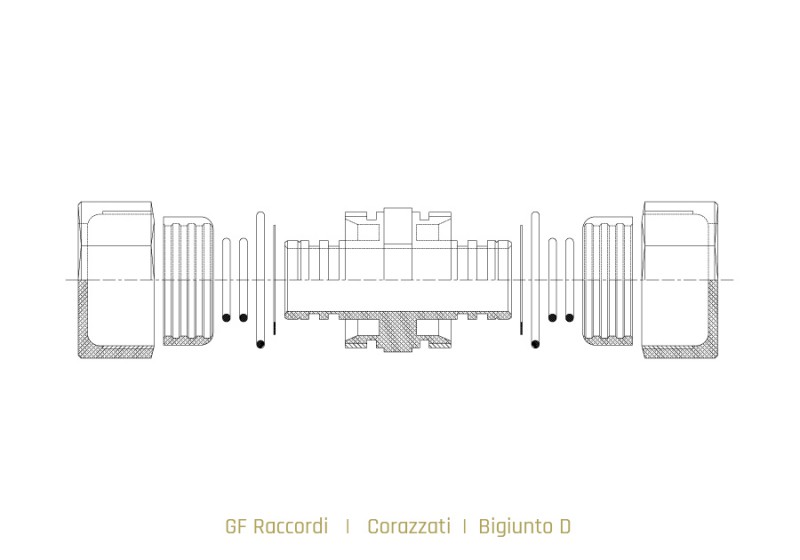

The Armoured double joint fitting is made up of the following components:

1 Hot moulded CW617N brass body

2 Hot moulded CW617N brass ring-tightener ring nuts

2 Brass self-tightening conical rings CW614N derived from bar

4 O-rings in nontoxic NBR 70 rubber. Compound suitable for contact with potable water approved: ACS No. 09 CLP LI 008 – TZW KTW D1 D2 of 19 Dec 2007 – NSF ANSI 61 N° IG770-01

2 O-rings in nontoxic EPDM 70 rubber

2 PTFE washers



Code

Nominal diameter threading pipe PE

A

B

C

Unit weight

mm.

mm.

mm.

Kg.

RF_ABI032C

ᴓ 32 x ᴓ 32

53

73.5

30

0.650

RF_ABI040C

ᴓ 40 x ᴓ 40

62

84.5

32

0.960

RF_ABI050C

ᴓ 50 x ᴓ 50

73

94

35.5

1.335

RF_ABI063C

ᴓ 63 x ᴓ 63

87

96

40

1.600
