TE Fitting


Catalogo > Threaded Fittings





Fitting composition and dimensional characteristics:

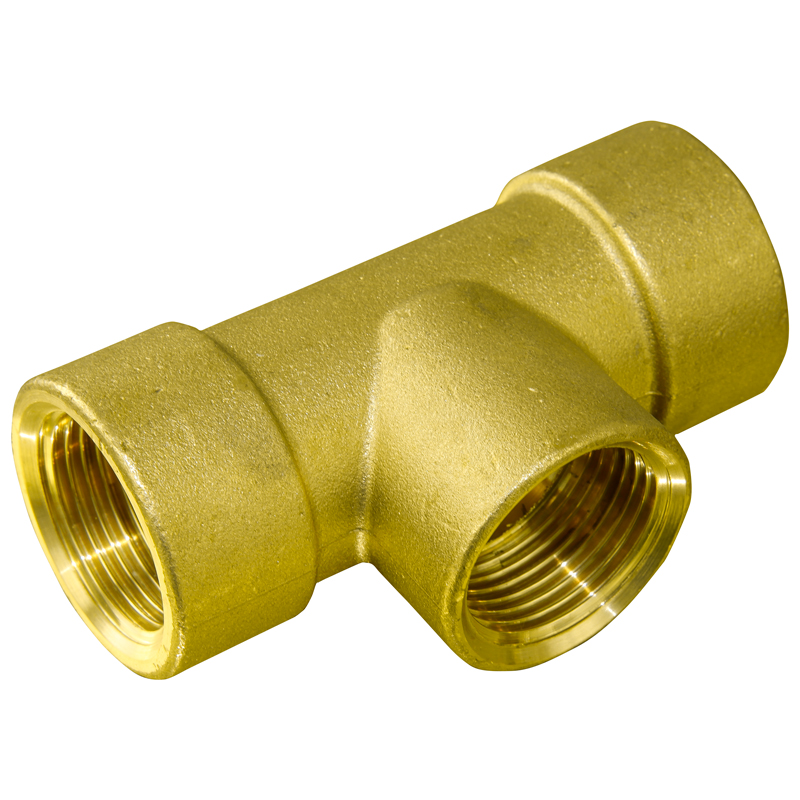

The Female-Female-Female TE fitting is derived from the moulding of our Unirapid TE and precisely for this reason, it is bigger and heavier than most of the threaded elbows on the market

1 Body in brass CW617N, hot moulded

The female threading of our fittings is cylindrical, in compliance with standard UNI ISO 228.

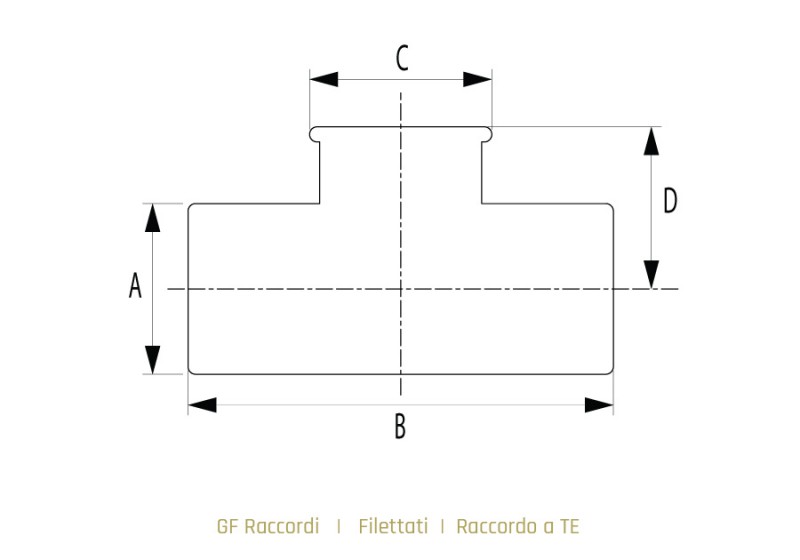

Code

Female threading diameter UNI 228

A

B

C

D

Unit weight

mm.

mm.

mm.

mm.

Kg.

TE12FFF

½” x ½” x ½”

28.8

68.5

29

27

0.220

TE34FFF

¾” x ¾” x ¾”

34.5

84.5

36

32

0.380

TE1FFF

1” x 1”x 1”

42.5

100

40

37

0.500

TE114FFF

1”1/4 x 1”1/4 x 1”1/4

52

120

55

41.5

0.910
