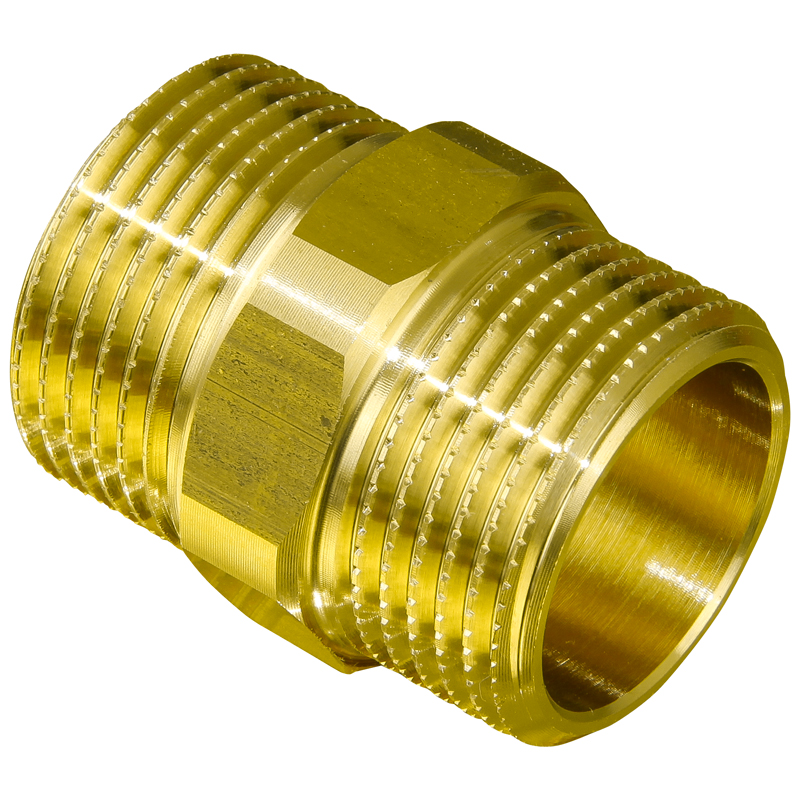

Nipples


Catalogo > Threaded Fittings





Fitting composition and dimensional characteristics:

The following size Nipples in our production:

 ½” – ¾” – 1” – 1” ¼” are derived from bar in brass CW614N.

The following size Nipples in our production:

 1” ½ - 2” – 2” ½  are derived from a hot moulded body in brass CW617N.

The male threading of our Nipples is cylindrical, in compliance with standard UNI ISO 228.



Codice

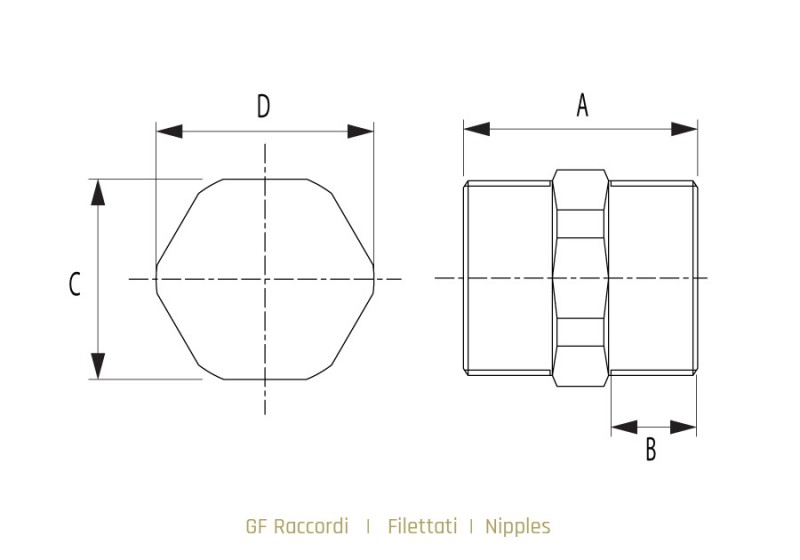

Male threading diameter gas UNI 228

A

B

C

D

Unit weight

mm.

mm.

mm.

mm.

Kg.

NIP12

½” x ½”

40

15

22

25

0.050

NIP34

¾” x ¾”

42

15.8

28

30.5

0.075

NIP1

1” x 1”

45

16.5

35

38

0.115

NIP114

1” ¼  x 1” ¼

49.5

18

43

46.5

0.155

NIP112

1” ½” x 1” ½”

55.5

20

52.5

58

0.275

NIP2

2” x 2”

59.5

22.5

63.5

69.5

0.385

NIP212

2” ½ x 2” ½

67

24

77

85

0.755
