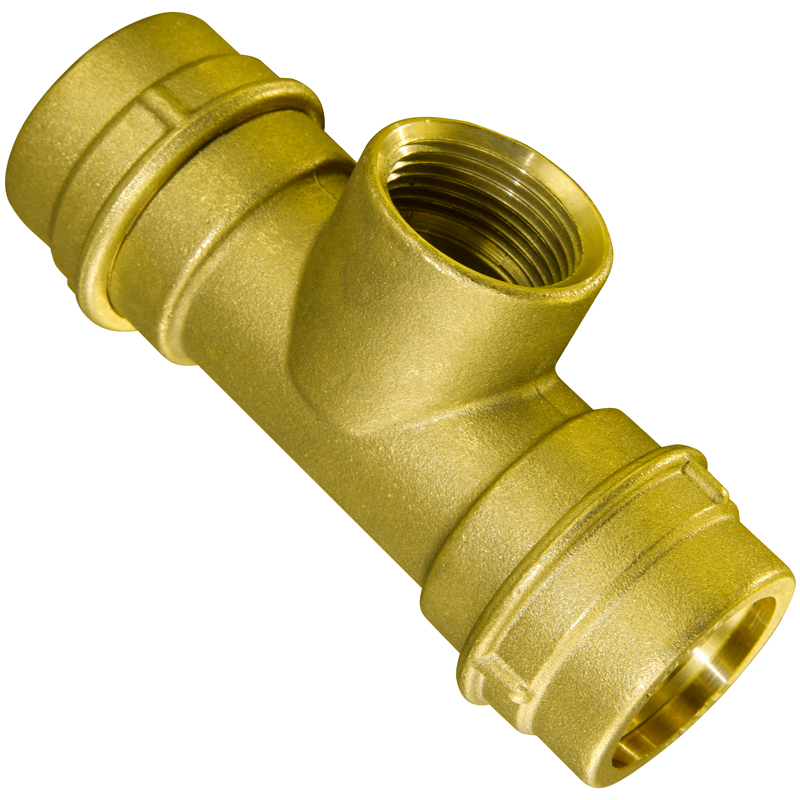

TE Fitting


Catalogo > Unirapid

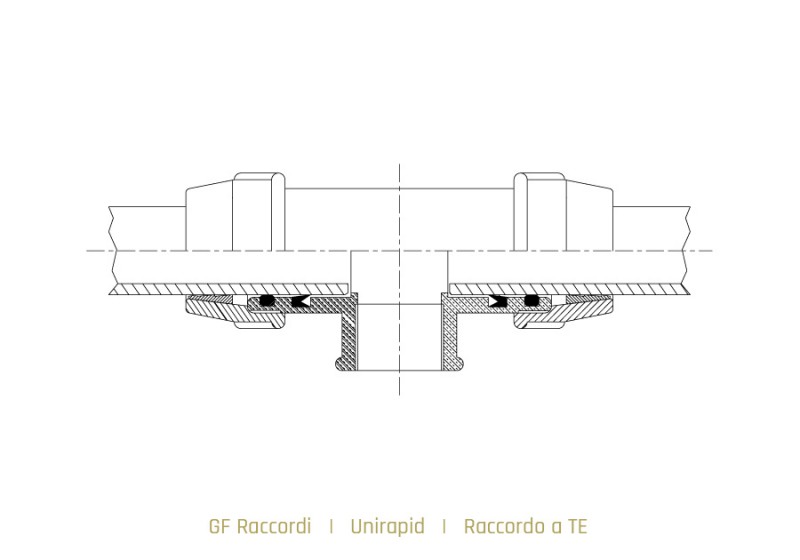

Fitting composition and dimensional characteristics:

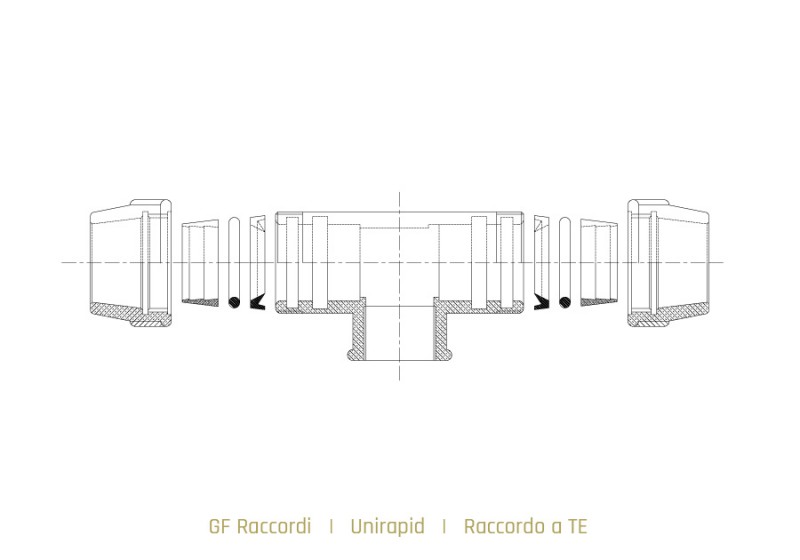

The UNIRAPID TE fitting is made up of the following components:

1 Body in brass CW617N, hot moulded

2 Ring-tightener ring nuts CW617N in brass

2 Self-tightening conical rings CW614N in brass derived from bar

2 O-rings in nontoxic NBR 70 rubber. Compound suitable for contact with potable water approved: ACS No. 09 CLP LI 008 – TZW KTW D1 D2 of 19 Dec 2007 – NSF ANSI 61 N° IG770-01

2 Collar gasket in nontoxic NBR FDA rubber. Compound suitable for the requirements of Ministerial Decree No. 174 of 06 Apr 04 for contact with potable water lab certified. CERISIE RP 644/2012

The female threading of our fittings is cylindrical, in compliance with standard UNI ISO 228 which defines the dimensions and the length of the threading.

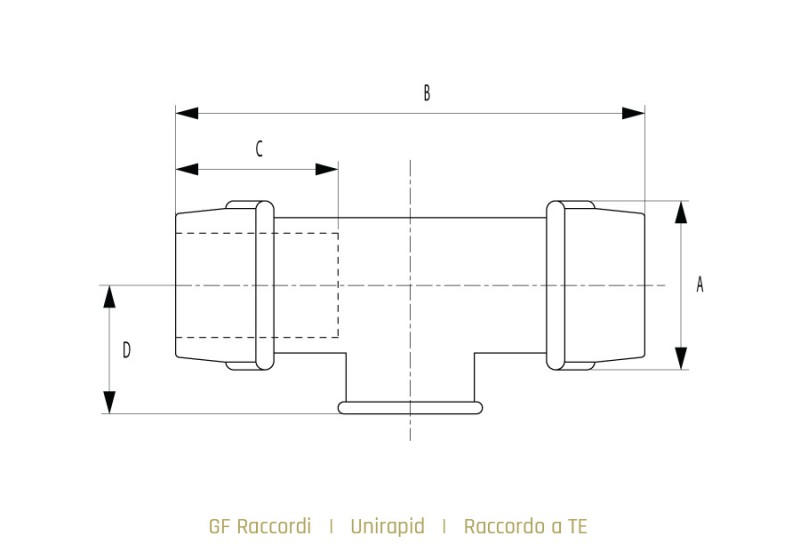

Code

Female threading diameter gas UNI 228

Nominal diameter threading pipe PE

A

B

C

D

Unit weight

mm.

mm.

mm.

mm.

Kg.

RF_ATE020

½”

ᴓ 20 x ᴓ 20

35

98.5

37

27

0.300

RF_ATE025

¾”

ᴓ 25 x ᴓ 25

42

115

41

32

0.475

RF_ATE032

1”

ᴓ 32 x ᴓ 32

50

131

48

37

0.590

RF_ATE040

1”1/4

ᴓ 40 x ᴓ 40

59

152

51

41.5

1.085

RF_ATE050

1”1/2

ᴓ 50 x ᴓ 50

71

183

61

51

1.650

RF_ATE063

2”

ᴓ 63 x ᴓ 63

87

200

62

60

2.490

RF_ATE075

2”1/2

ᴓ 75 x ᴓ 75

100

233

70

73

3.650

RF_ATE090

3”

ᴓ 90 x ᴓ 90

120

274

84.5

83

5.940
