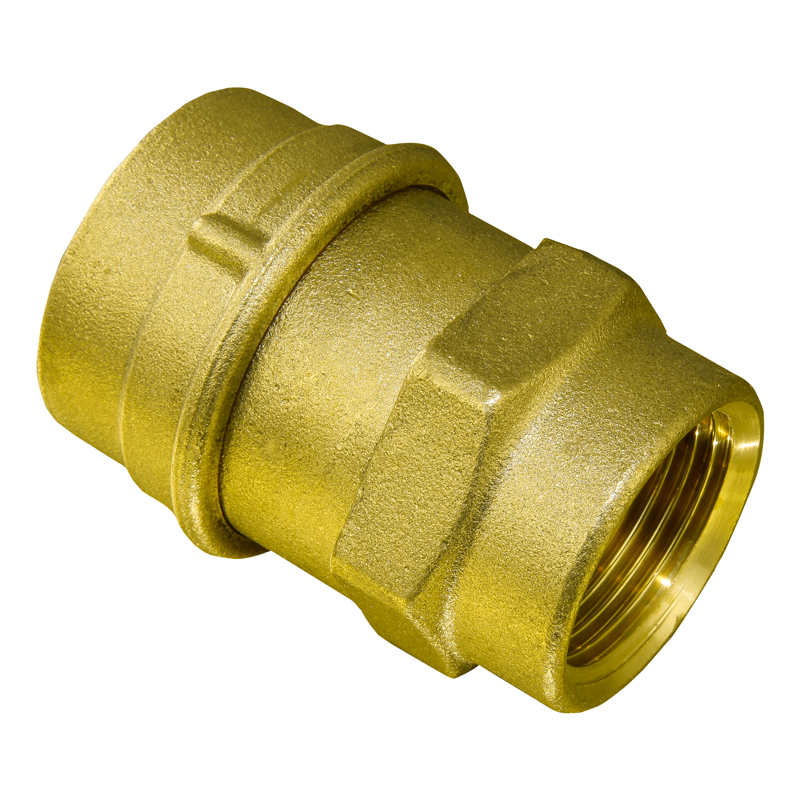

Female mono-joint


Catalogo > Unirapid





Fitting composition and dimensional characteristics:

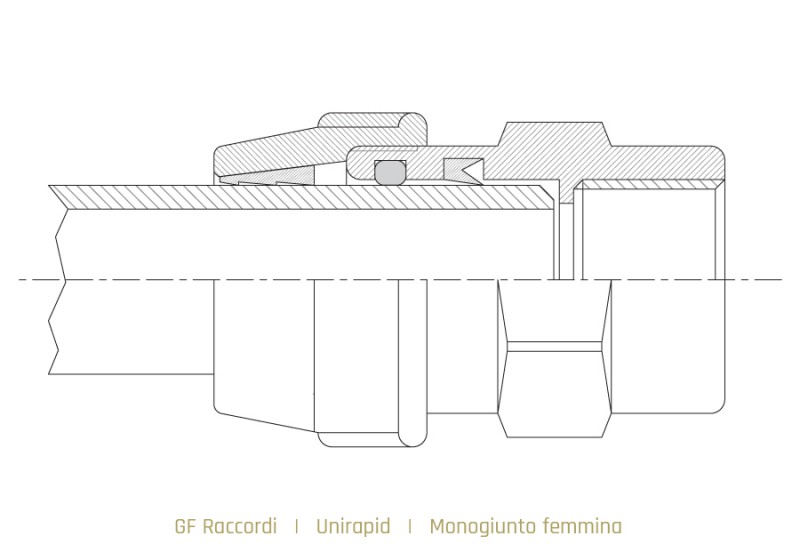

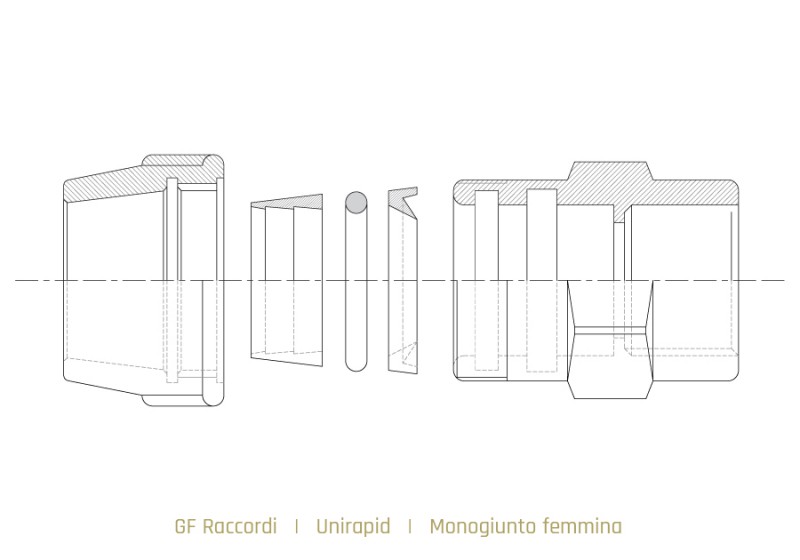

The UNIRAPID female fitting is made up of the following components:

1 Hot moulded CW617N brass body

1 Hot moulded CW617N brass ring-tightener ring nut

1 Brass self-tightening conical ring CW614N derived from bar

1 O-rings in nontoxic NBR 70 rubber. Compound suitable for contact with potable water approved: ACS No. 09 CLP LI 008 – TZW KTW D1 D2 of 19 Dec 2007 – NSF ANSI 61 N° IG770-01

1 Collar gasket in nontoxic NBR FDA rubber. Compound suitable for the requirements of Ministerial Decree No. 174 of 06 Apr 04 for contact with potable water lab certified. CERISIE RP 644/2012


The female threading of our fittings is cylindrical, in compliance with standard UNI ISO 228.




Code

 Female threading diameter gas UNI 228

Nominal diameter threading pipe PE

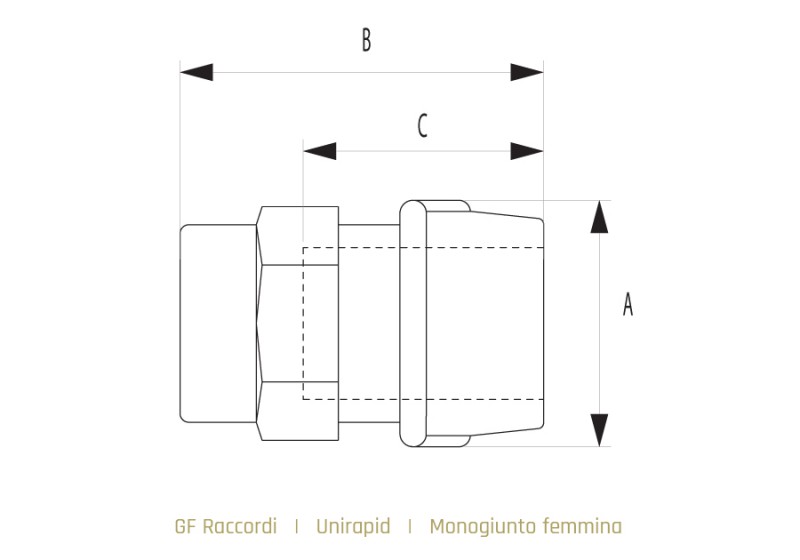

A

B

C

Unit weight

mm.

mm.

mm.

Kg.

RF_AFE020

½”

ᴓ 20

35

54.5

37

0.160

RF_AFE025

¾”

ᴓ 25

42

60.5

41.5

0.220

RF_AFE032

1”

ᴓ 32

50

68.5

49

0.335

RF_AFE040

1”1/4

ᴓ 40

59

72

51

0.475

RF_AFE050

1”1/2

ᴓ 50

71

86.5

64

0.760

RF_AFE063

2”

ᴓ 63

87

90

67

1.040

RF_AFE075

2”1/2

ᴓ 75

100

99.5

72.5

1.660

RF_AFE090

3”

ᴓ 90

120

121

93

2.700

RF_AFE0110

4”

ᴓ 110

143

128.5

100.5

3.670
