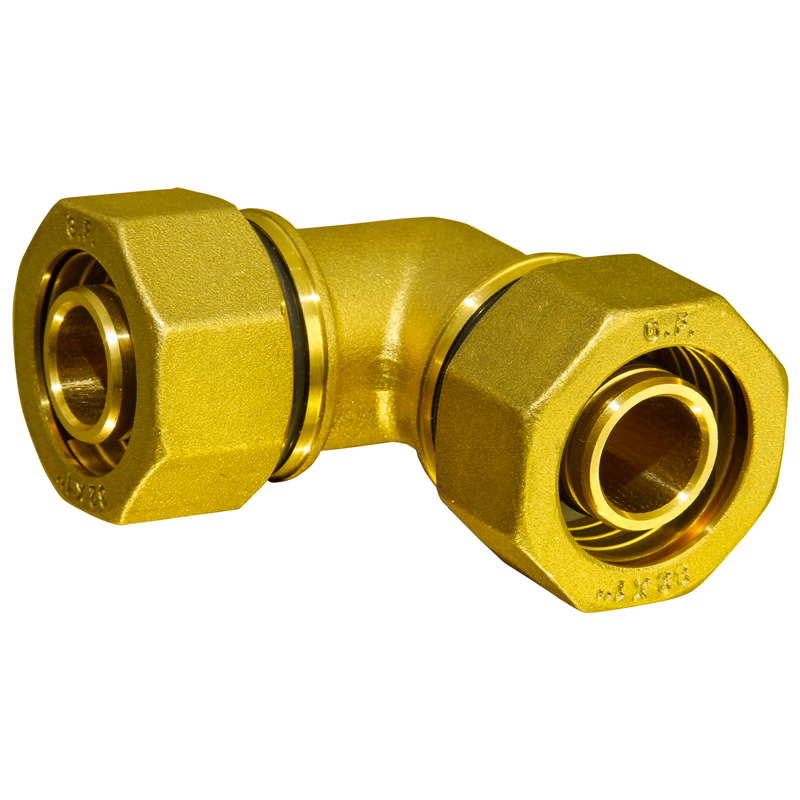

PE/PE Elbow


Catalogo > Armoured Fittings

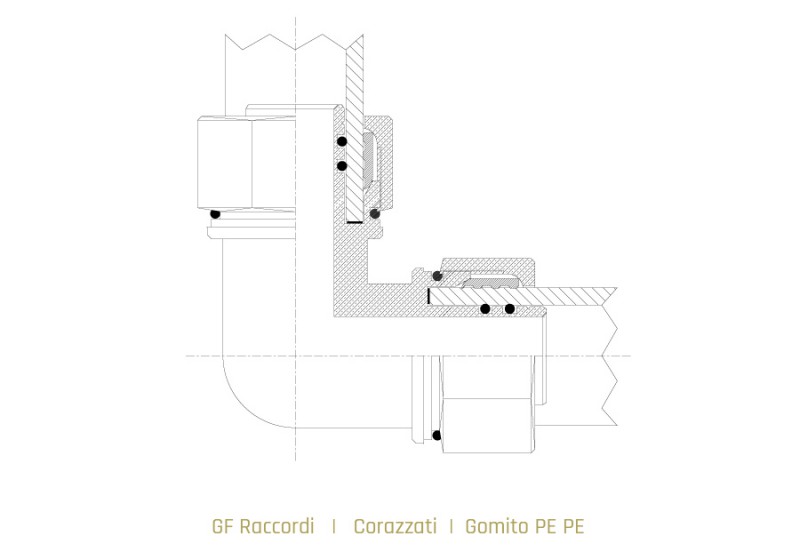

Composition of fitting for multilayer - armoured pipe and dimensional characteristics:

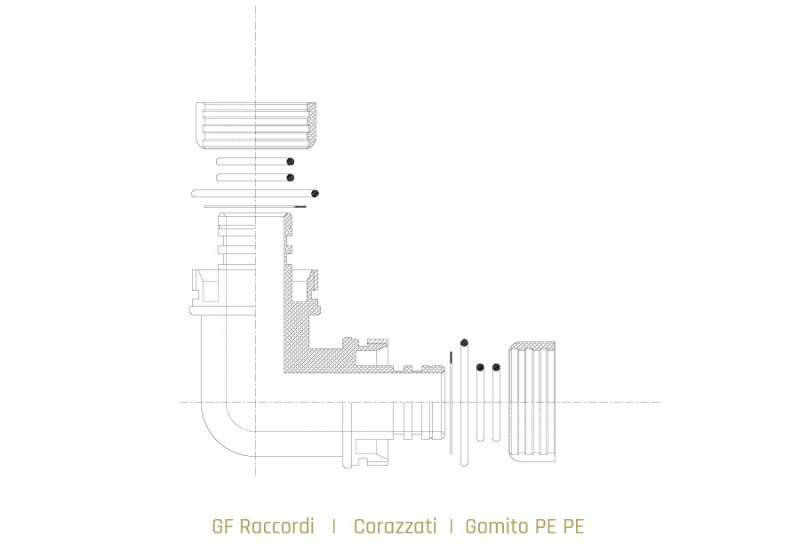

The Armoured PE/PE Elbow fitting is made up of the following components:

1 Body in brass CW617N, hot moulded

2 Ring-tightener ring nut in brass CW617N, hot moulded

2 Ring-tightener rings in brass CW614N derived from bar

4 O-rings in non toxic NBR 70 rubber. Compound suitable for contact with potable water approved: ACS No. 09 CLP LI 008 – TZW KTW D1 D2 of 19 Dec 2007 – NSF ANSI 61 N° IG770-01

2 O-rings in non toxic EPDM 70 rubber

2 PTFE washers

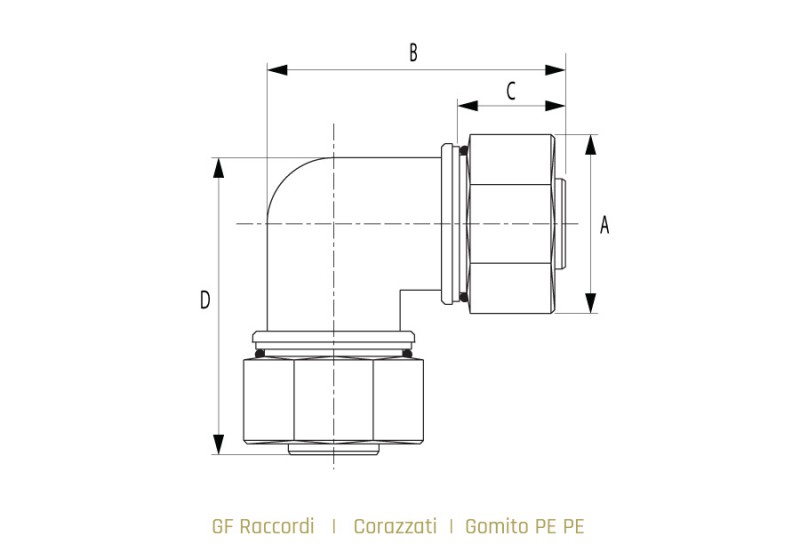

Code

Nominal diameter threading pipe PE

A

B

C

D

Unit weight

mm.

mm.

mm.

mm.

Kg.

RF_AGP032C

ᴓ 32 x ᴓ 32

53

84

30

84

0.990

RF_AGP050C

ᴓ 50 x ᴓ 50

73

127

35.5

127

2.050

RF_AGP063C

ᴓ 63 x ᴓ 63

87

137

40

137

2.670
