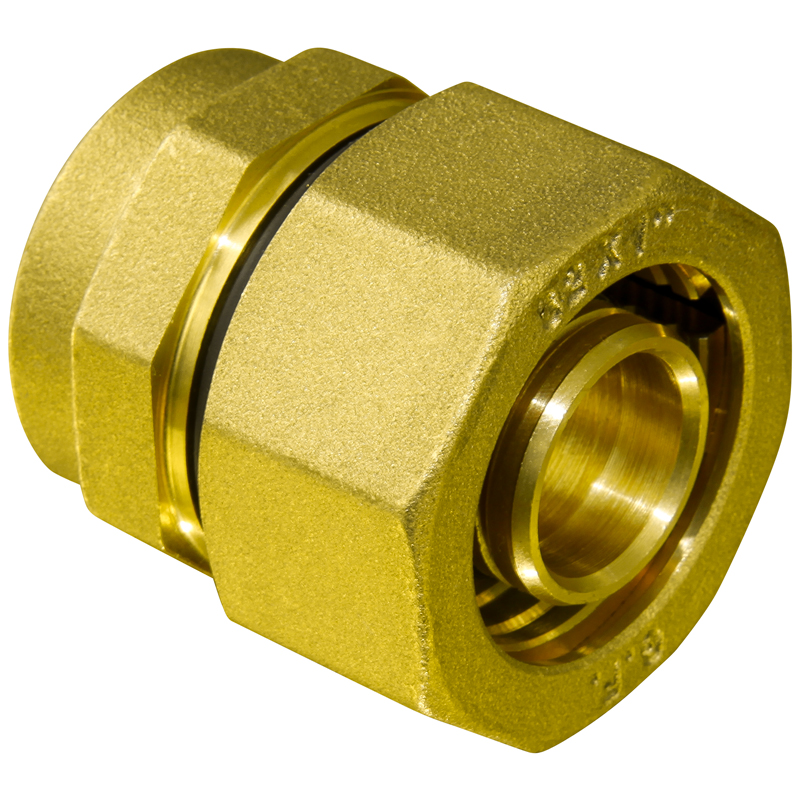

Female joint


Catalogo > Armoured Fittings

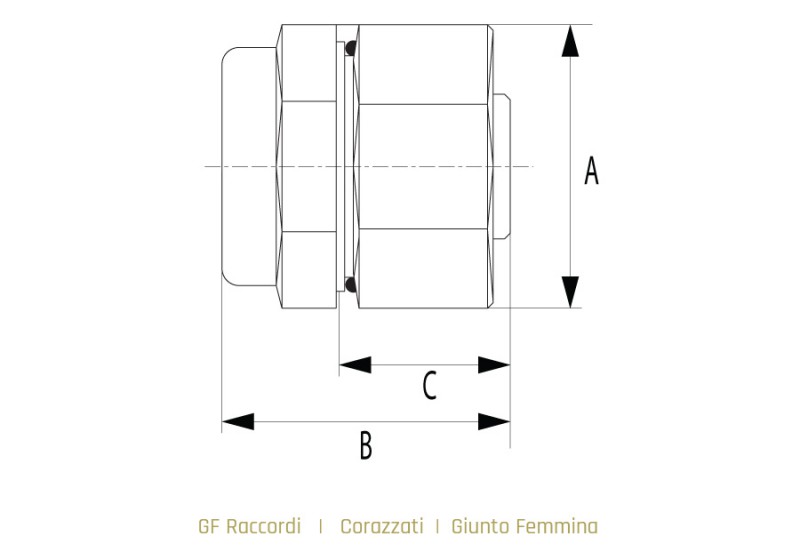

Composition of fitting for multilayer - armoured pipe and dimensional characteristics:

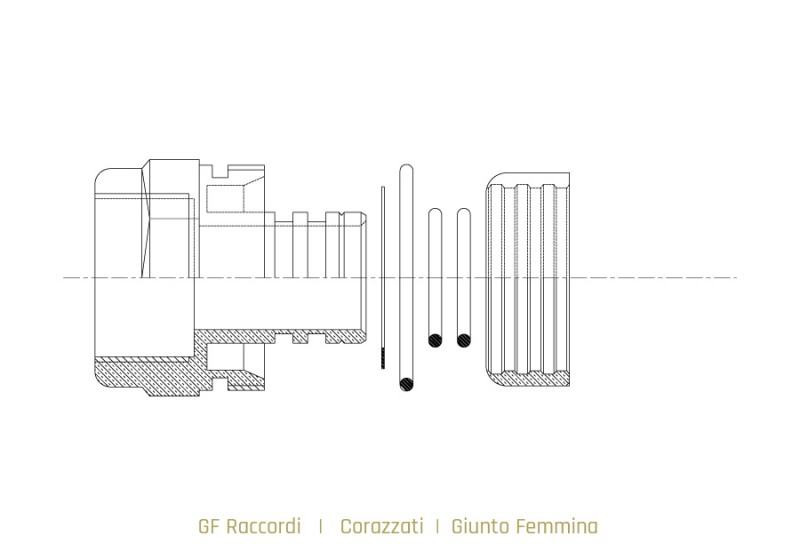

The Armoured female joint fitting is made up of the following components:

1 Hot moulded CW617N brass body

1 Hot moulded CW617N brass ring-tightener ring nut

1 Brass self-tightening conical ring CW614N derived from bar

1 O-rings in nontoxic NBR 70 rubber. Compound suitable for contact with potable water approved: ACS No. 09 CLP LI 008 – TZW KTW D1 D2 of 19 Dec 2007 – NSF ANSI 61 N° IG770-01

1 O-rings in nontoxic EPDM 70 rubber

1 PTFE washers



The female threading of our fittings is cylindrical, in compliance with standard UNI ISO 228.



Code

Female threading diameter gas UNI 228

Nominal diameter threading pipe PE

A

B

C

Unit weight

mm.

mm.

mm.

Kg.

RF_AFE032C

1”

ᴓ 32

53

52

30

0.380

RF_AFE040C

1”1/4

ᴓ 40

62

61.5

32

0.590

RF_AFE050C

1”1/2

ᴓ 50

73

73.5

35.5

0.860

RF_AFE063C

2”

ᴓ 63

87

77

40

1.230
