Double joint


Catalogo > Unirapid

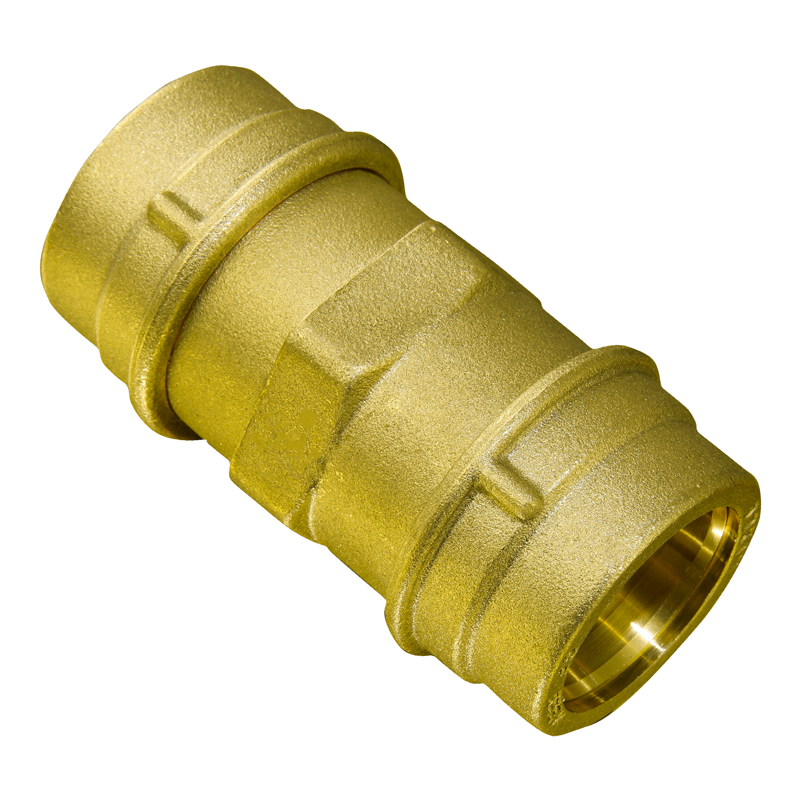

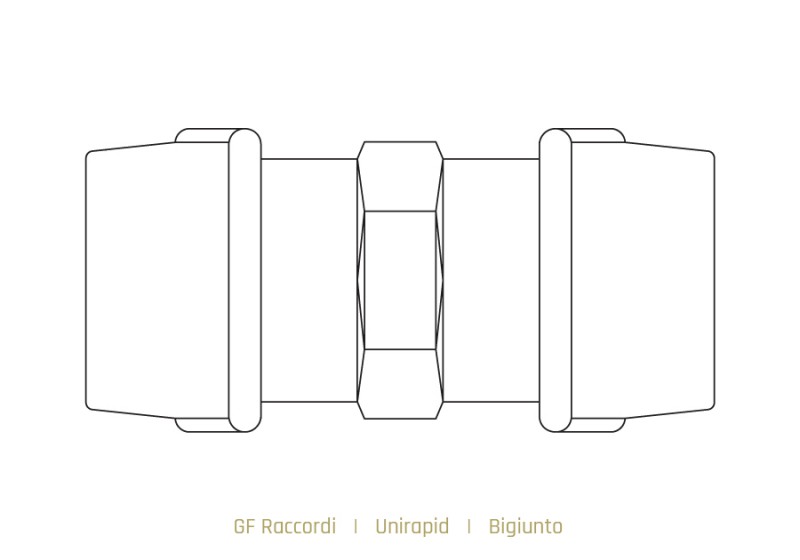

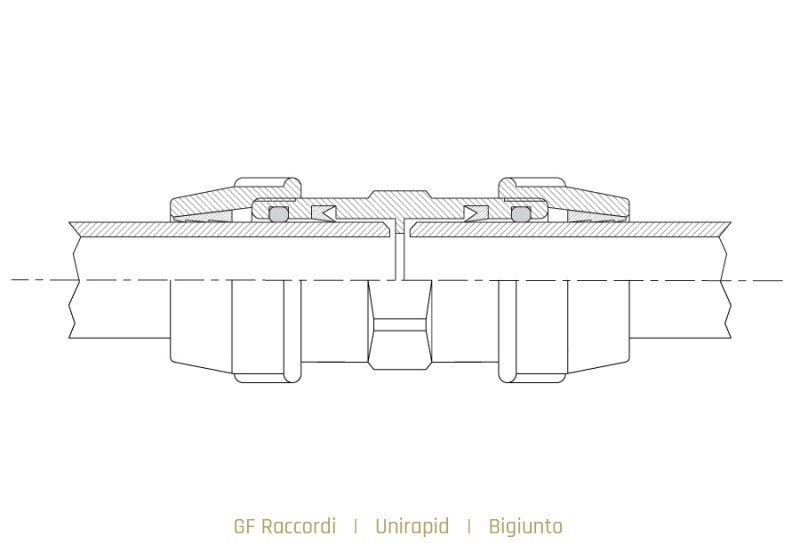

Fitting composition and dimensional characteristics:

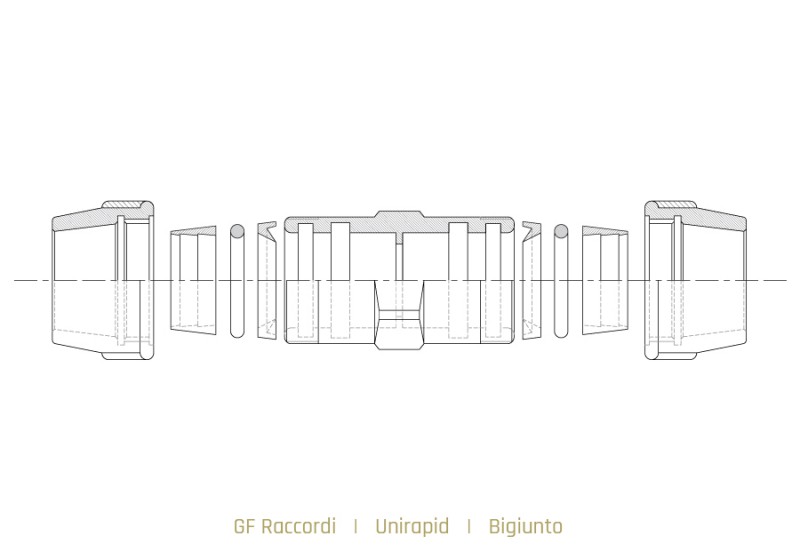

The UNIRAPID double joint fitting is made up of the following components:

1 Hot moulded CW617N brass body

2 Hot moulded CW617N brass ring-tightener ring nuts

2 Brass self-tightening conical rings CW614N derived from bar

2 O-rings in nontoxic NBR 70 rubber. Compound suitable for contact with potable water approved: ACS No. 09 CLP LI 008 – TZW KTW D1 D2 of 19 Dec 2007 – NSF ANSI 61 N° IG770-01

2 Collar gaskets in nontoxic NBR FDA rubber. Compound suitable for the requirements of Ministerial Decree No. 174 of 06 Apr 04 for contact with potable water lab certified. CERISIE RP 644/2012





Code

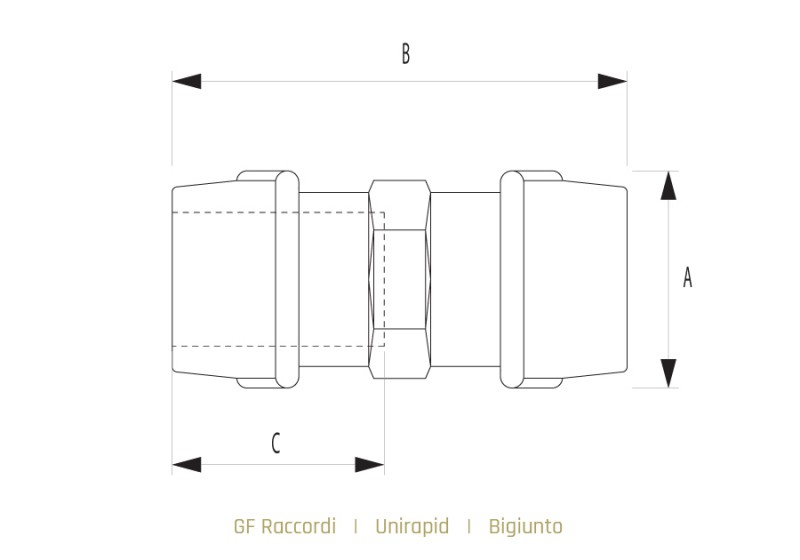

Nominal diameter threading pipe PE

A

B

C

Unit weight

mm.

mm.

mm.

Kg.

RF_ABI020

ᴓ 20 x ᴓ 20

35

75

37

0.215

RF_ABI025

ᴓ 25 x ᴓ 25

42

84

41

0.315

RF_ABI032

ᴓ 32 x ᴓ 32

50

93

46

0.470

RF_ABI040

ᴓ 40 x ᴓ 40

59

99

49

0.670

RF_ABI050

ᴓ 50 x ᴓ 50

71

117

58

1.060

RF_ABI063

ᴓ 63 x ᴓ 63

87

121

60

1.450

RF_ABI075

ᴓ 75 x ᴓ 75

100

142

70

2.250

RF_ABI090

ᴓ 90 x ᴓ 90

120

175

84

3.775

RF_ABI0110

ᴓ 110 x ᴓ 110

143

202

97

5.200
