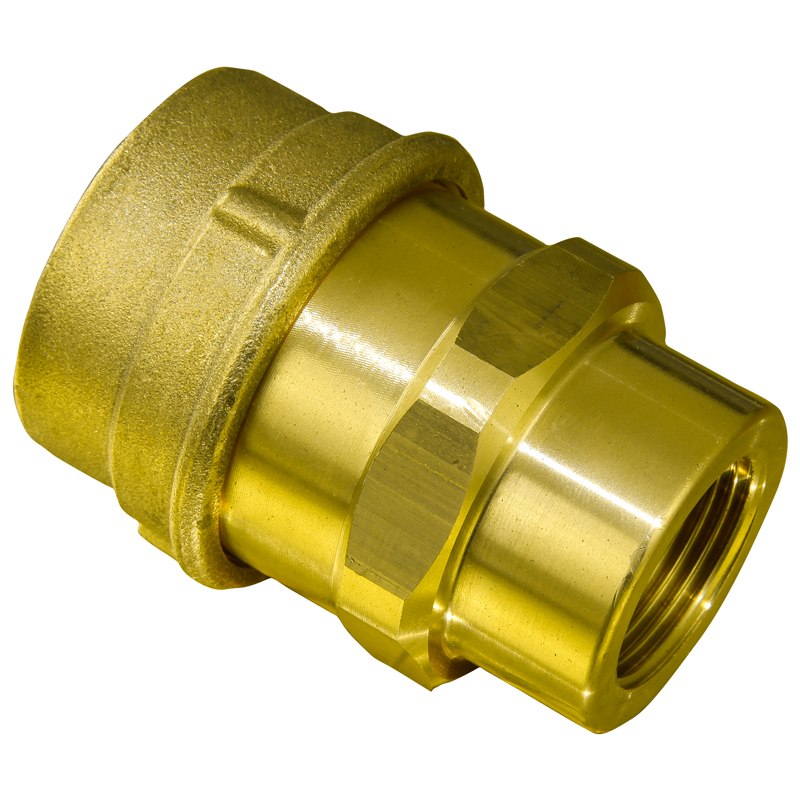

Reduced female


Catalogo > Unirapid

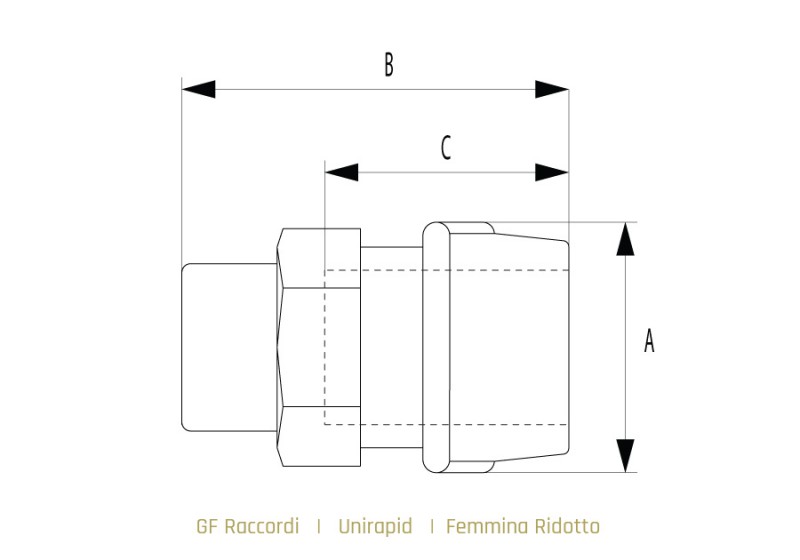

Fitting composition and dimensional characteristics:

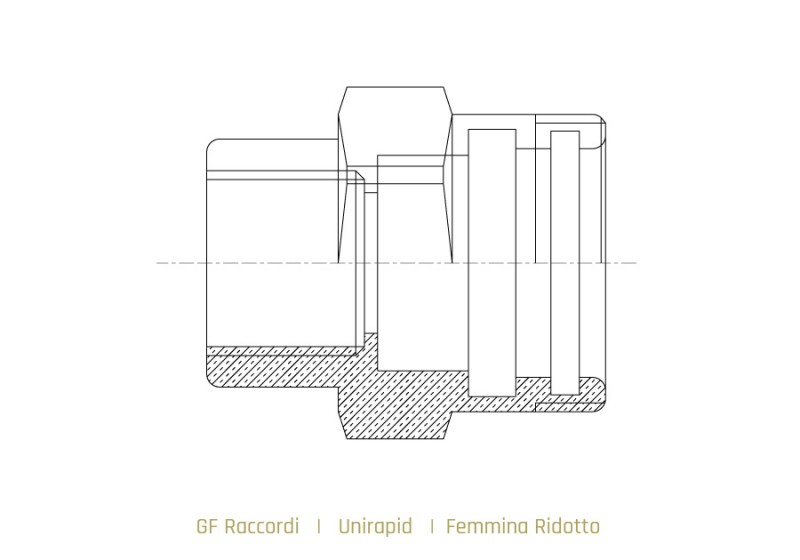

The UNIRAPID reduced female fitting is made up of the following components:

1 Hot moulded CW617N brass body

1 Hot moulded CW617N brass ring-tightener ring nut

1 Brass self-tightening conical ring CW614N derived from bar

1 O-rings in nontoxic NBR 70 rubber. Compound suitable for contact with potable water approved: ACS No. 09 CLP LI 008 – TZW KTW D1 D2 of 19 Dec 2007 – NSF ANSI 61 N° IG770-01

1 Collar gasket in nontoxic NBR FDA rubber. Compound suitable for the requirements of Ministerial Decree No. 174 of 06 Apr 04 for contact with potable water lab certified. CERISIE RP 644/2012


The female threading of our fittings is cylindrical, in compliance with standard UNI ISO 228.



Code

Female threading diameter gas UNI 228

Nominal diameter threading pipe PE

A

B

C

Unit weight

mm.

mm.

mm.

Kg.

RF_AFE2512

½”

ᴓ 25

42

59

42

0.200

RF_AFE3212

½”

ᴓ 32

50

65.5

46

0.300

RF_AFE3234

¾”

ᴓ 32

50

65.5

46

0.320
